Your Professional Operating Mechanism Supplier
Our goal is to become your true partner in the field of operating mechanism. Granso electric produces a broad, tailored, comprehensive range of metal parts which can meet various requirements. We also have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
-
![Circuit Breaker Spring Charge Operating Mechanism]()
Circuit Breaker Spring Charge Operating MechanismThis circuit breaker's spring-charged operating mechanism consists of two parts: an upright-mounted isolating mechanism and an inverted circuit breaker operating mechanism.view more -
![Circuit Breaker Operating Mechanism]()
Circuit Breaker Operating MechanismThis circuit breaker operating mechanism consists of two parts: the circuit breaker operating mechanism and the disconnector operating mechanism. It is compatible with our company's GRHV-12/630...view more -
![Breaker Operating Mechanism]()
Breaker Operating MechanismThe PT breaker operating mechanism is a dedicated mechanical device within ring main units (RMUs) designed for the safe isolation of voltage transformers (PTs). Its core function is...view more -
![Spring Charged Mechanism Of Circuit Breaker]()
Spring Charged Mechanism Of Circuit BreakerThis series of spring charged mechanism of circuit breaker , also known as the SF6 circuit breaker operating mechanism, this device is suitable for closing and opening circuit breakers in...view more -

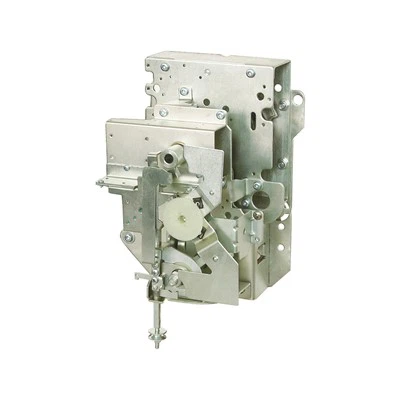

![Circuit Breaker Mechanism]()
Circuit Breaker MechanismThis incoming line circuit breaker mechanism is suitable for a variety of indoor high-voltage SF6 load switchgear. This series of circuit breaker mechanism adopts planar vortex springs to control...view more -
![Operating Mechanism Of Sf6 Circuit Breaker]()
Operating Mechanism Of Sf6 Circuit BreakerThis outcoming line operating mechanism of sf6 circuit breaker is suitable for a variety of indoor high-voltage SF6 load switchgear. This series of operating mechanism of sf6 circuit breaker...view more -
![Sf6 Circuit Breaker Mechanism]()
Sf6 Circuit Breaker MechanismThis incoming SF6 circuit breaker mechanism is suitable for various indoor high-voltage SF6 load switchgear. It features a moderate size, easy installation and operation, and strong adaptability....view more -
![Sf6 Circuit Breaker Spring Mechanism]()
Sf6 Circuit Breaker Spring MechanismA sf6 circuit breaker spring mechanism uses the energy stored in a pre-charged spring to perform the opening and closing operations of a circuit breaker. Spring charging is typically accomplished...view more -
![Motor Operating Mechanism]()
Motor Operating MechanismA motor operating mechanism uses the energy stored in a pre-charged spring to perform the opening and closing operations of a circuit breaker. Spring charging is typically accomplished by an...view more
Why Chooose Us
Our team:
We have a professional team of over 200 employees, including over 25 professional technicians.
Quality control:
We rigorously control every process, ensuring our products comply with relevant standards.
Our services:
In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation.
During the sales period, we ensure timely delivery and provide installation guidance.
For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.
Product Parameters
| No. | Item | Unit | Data |
| 1 | Output Angle of the mechanism | ° | about 87° |
| 2 | Just split speed (within 10ms after just split) | m/s | 0.8±0.2 |
| 3 | Opening time | m/s | ≤100 |
| 4 | Mechanical life | times | ≥10000 |
| 5 | Rated voltage | V | DC220V; DC110V; DC48V; DC24V |
| 6 | Just closing speed (within 5ms before just closing) | m/s | 0.6±0.2 |
| 7 | Closing time | ms | ≤100 |
| 8 | Operating torque | N.m | ≤100 |
Advantages of Operating Mechanism
Faster response time:
When a system fault occurs, the operating mechanism must actuate the circuit breaker to open within a very short time (typically within tens of milliseconds) after the relay protection device issues a signal. This rapid operation quickly interrupts the fault current, minimizing damage to power equipment and shortening grid outage duration.
Improved reliability:
The operating mechanism is designed to operate accurately even under extreme conditions, such as the significant electrical and mechanical stresses experienced during a short-circuit fault.
Good environmental adaptability:
Its performance is less affected by ambient temperature and is more stable than hydraulic or pneumatic mechanisms.
Relatively simple maintenance:
No complex oil or air circuits are required, resulting in high reliability and minimal maintenance.
Instructions of operating mechanism
Energy Storage Operation:
After the mechanism is mounted on the cabinet, insert the dedicated handle into the operating shaft located on the lower right side of the mechanism. Turn the handle clockwise until it clicks (the energy storage indicator shaft will push the energy storage microswitch to the fully closed position), and energy storage is in place. For electric operation, the mechanism automatically charges energy upon power-up. Once energy storage is in place, the motor circuit is disconnected, and the energy storage is maintained, waiting for energy release to close the circuit breaker (during electric operation, ensure that the secondary circuit is correct).
Closing Operation:
Press the green button to momentarily release the closing energy, and the mechanism pushes the circuit breaker to close the main circuit. For electric operation, energize the closing solenoid coil, which momentarily releases the stored energy. The mechanism pushes the circuit breaker to close the main circuit and simultaneously charges the opening spring (energy storage can continue at this point, but the anti-error interlock prevents further closing).
Opening Operation:
Press the red button to momentarily release the opening energy, and the mechanism pushes the circuit breaker to open the main circuit. During electric operation, the tripping electromagnet coil is energized, the tripping electromagnet acts instantaneously to release the stored energy, and the mechanism pushes the circuit breaker switch to complete the main circuit trip.
Types of Operating Mechanism
Packing and Shipping
|
Packing |
Wooden / Catoon / Pallet |
|
Shipping |
Express, Air Freight, Sea Freight, LCL/FCL |
FAQ
We're professional operating mechanism manufacturers and suppliers in China, specialized in providing high quality custom service. We warmly welcome you to buy operating mechanism at competitive price from our factory.
