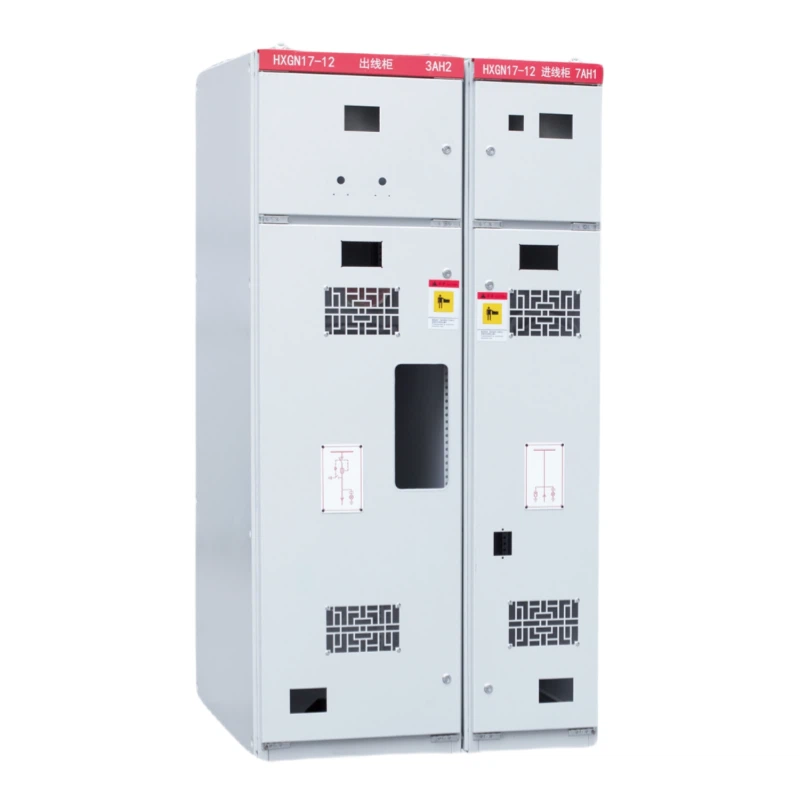

Sf6 Ring Main Unit

XGN17-12 type AC sf6 ring main unit is suitable for use in 10Kv three-phase Ac 50Hz ring network or terminal power supply system. The utility model can be used for distributing electric energy or overload and short circuit protection, and is especially suitable for the places of no oil. no maintenance and frequent operation. Sf6 ring main unit with aluminum-zinc coated sheet by CNC machining after assembled, protection grade reaches lP3X, and have reliable mechanical interlocking and anti-misoperating function.

 Support tailored size

 Support installing electric components inside

1. The load switch is an independent unit, and the inner part of the utility model is provided with six sulfufluoride gas as aninsulating medium;
2. Can be equipped with Schneider SF6 load switch, ABB production SFL-12, SFG-12 switch, CHINTFLN36-12 switch, FL44-12 switch;
3. The shell is made of high quality aluminum, zinc plate, has the advantages of corrosion resistance, oxidation resistance,novel structure, beautiful appearance,
4. Spring energy storage operation, three phase can automatically jump off, five anti lock interlock andoperating mechanism,the linkage safety and reliability;
5. The ring network cabinet can be conveniently formed a ring network power supply unit and other wiringmodes, and the expansibility is good;
6. Six sulfur hexafluoride load switch, safe and reliable performance, no oil, toxic, no fire and explosion risk;
7. And the material can be used in galvanized oraluminized zinc plate production.
